Details

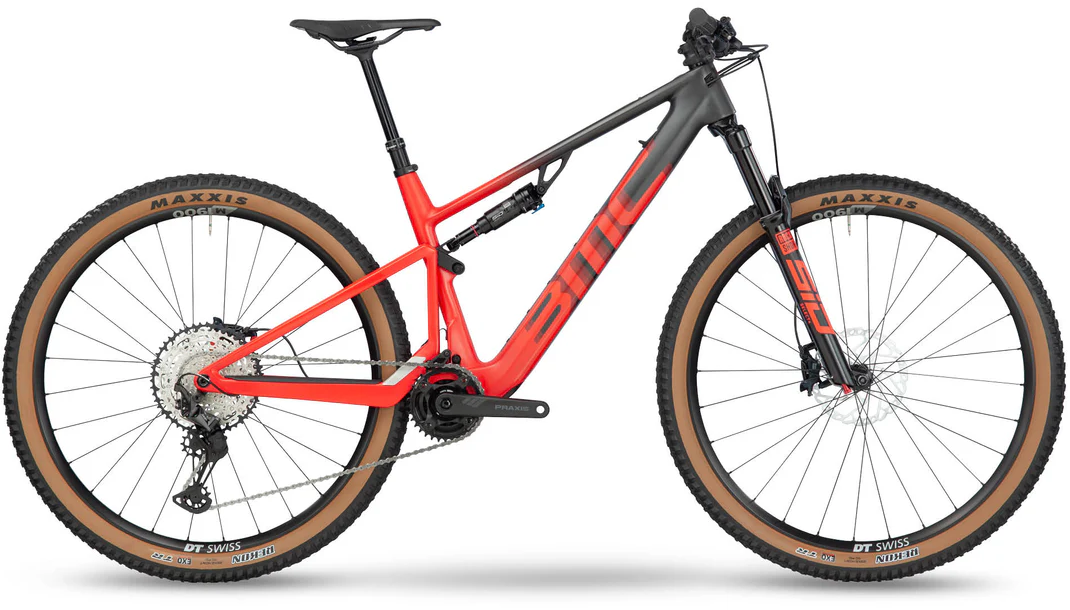

Amplify your trail-game with the all-new Fourstroke AMP LT built to perform on every terrain. This advanced XC performance machine delivers a progressive riding feel with 120mm of revolutionized APS dual-link suspension travel. Hidden trail-racing power comes curtesy of the trailblazing TQ-HPR50 drive system for nonstop uphill and downhill speed to make sure nothing stands in your way. The full-carbon frame includes our most progressive Big Wheel Concept Race geometry to accommodate two water bottles, an integrated fork stopper and frame protection. Fourstroke AMP LT TWO USA allows you to charge the trails with a Shimano XT 12 spd drivetrain, RockShox SID SL Select+ fork and RockShox SIDLuxe Select+ shock, a DT Swiss M 1900 wheelset with 30mm inner width, X-Fusion Manic seatpost and the powerful TQ-HPR50 drive unit.
Hidden Power
HPR50 drive unit. Powerful, light and compact, it is seamlessly integrated into the frame for an uncompromised look and natural ride feeling.
Optimized APS Suspension
More traction equals more speed and that is what we’re after. Next-level kinematics tuning, and best-in-class suspension performance delivers full traction, great efficiency, and active suspension on every terrain.
Redefined Geometry
BWC Race is tailored to a fast and progressive racing style designed to attack the steepest and loosest courses with the improved 66.5° head angle and a long front-end.
Go Long
The Fourstroke AMP LT is versatile by design to let you carry speed with confidence on technical trails. It has been optimized to fit two water bottles or a TQ range extender plus a bottle.
Size | S | M | L | XL |
Rider Height | <172 | 172-182 | 180-188 | >188 |
Reach | 437 | 457 | 476 | 496 |
Stack | 594 | 605 | 615 | 627 |
Bar Rise | 15 | 15 | 15 | 15 |
Bar Sweep | 9 | 9 | 9 | 9 |
Bar Width | 760 | 760 | 760 | 760 |
BB Drop | 40 | 40 | 40 | 40 |
Crank Length | 165 | 170 | 170 | 175 |
Fork Length | 531 | 531 | 531 | 531 |
Fork Rake | 44 | 44 | 44 | 44 |
Front Center | 725 | 751 | 775 | 800 |
Head Tube | 90 | 102 | 113 | 125 |
Head Tube Angle | 66.5 | 66.5 | 66.5 | 66.5 |
Rear Center | 435 | 435 | 435 | 435 |
Seat Angle | 77 | 77 | 77 | 77 |
Seat Tube | 420 | 430 | 470 | 490 |
Seatpost Drop | 125 | 150 | 150 | 170 |
Standover Height | 730 | 730 | 730 | 730 |
Stem Angle | 6 | 6 | 6 | 6 |
Stem Length | 40 | 50 | 50 | 60 |
Top Tube | 574 | 597 | 620 | 644 |
Trail | 115 | 115 | 115 | 115 |
Wheelbase | 1157 | 1178 | 1202 | 1227 |
Specs
Frame | Fourstroke LT AMP Carbon | APS Suspension System | 120mm Travel | Integrated Battery | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle |
---|---|
Fork | RockShox SID SL Select+ |
Rims/Wheels | DT Swiss M 1900 | 30mm Inner Width |
Hubs | DT Swiss 370 | Ratchet LN18 |
Tires | Maxxis Rekon 2.4" | EXO TR |
Crankset | Praxis eCrank |
Chainwheel | 34T |
Chain | SHIMANO CN-M6100 |
Rear Derailleur | SHIMANO XT (RD-M8100) |
Rear Cogs | SHIMANO Deore SLX (CS-M7100) |
Shifters | SHIMANO Deore XT (SL-M8100) | Rapidfire Plus |
Handlebars | BMC MRB 03 | 760mm |
Stem | Truvativ Atmos 6K |
Brake Levers | SHIMANO BL-M7100 Levers | BR-M7120 Calipers |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Carbon / Red / Small | 30002824 | 210000142669 |
