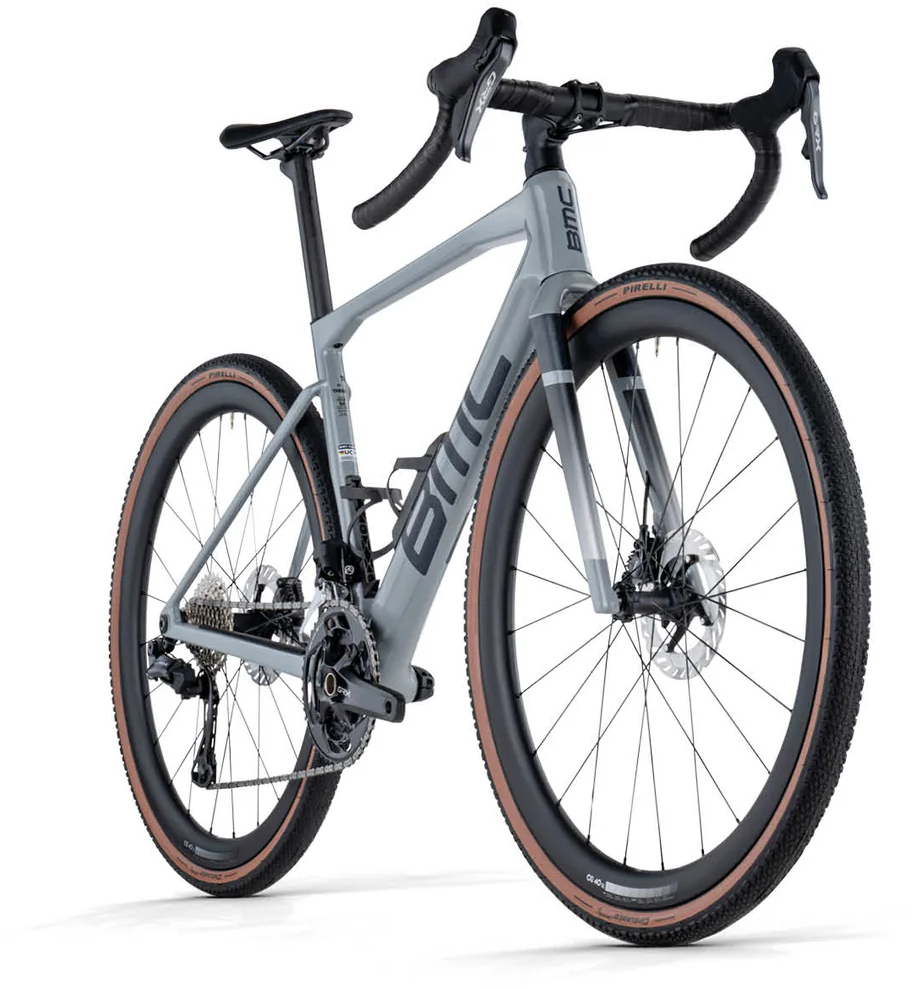

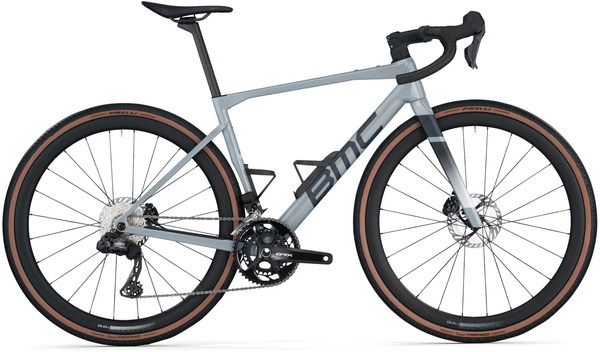

BMC Kaius 01 THREE

BMC Kaius 01 THREE
  • Color: Stone Grey
  • Color: Stone Grey
  • Color: Stone Grey
$9,799.00
Color: Stone Grey
Size: 54
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability at sales.tbz@gmail.com or call us at (905) 232-1321.

Details

Kaius is a premium carbon gravel bike built to be your elite race companion for all terrains. The unprecedented carbon layup and gravel-specific geometry ensure the perfect balance of stiffness, lightweight, and compliance for optimal traction on loose surfaces, front-end stability, and unmatched climbing prowess. Harnessing the precision and performance of our renowned leading road technologies, Kaius is a race machine tuned to the gravel wavelength with the engineered Kaius fork, our signature ICS2 stem and conventional bar, TCC Race compliance, compatibility with 1x and 2x drivetrains and up to 44 mm of tire clearance.

Speed Unbound
The innovative premium carbon layup uses ultra high-module fibres for unmatched stiffness resulting in maximum power transfer and minimal weight. Kaius boasts our Tuned Compliance Concept Race Technology for a comfortable ride on rough surfaces.

Race-ready Gravel Geometry
Kaius was built with one purpose: to be fast on gravel roads. That is why we produced a gravel-specific frame with a longer reach shifting the front wheel forward to improve stability and increase traction on loose surfaces.

Integrated Cockpit System (ICS)
ICS2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices.

Aerocore Design
Kaius comes in at the highest level of functional integration with our Aerocore design. This evolved solution integrates the bottle cages into the frame to optimize aerodynamic perfor

Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 390 397 401 405 410 414
Stack 510 530 550 570 595 620
Bar Drop 125 125 125 125 125 125
Bar Reach 70 70 70 70 70 70
Bar Width 390 390 390 410 410 430
BB Drop 80 80 80 80 80 80
Crank Length 170 170 172.5 172.5 175 175
Fork Length 387 387 387 387 387 387
Fork Rake 50 50 45 45 45 45
Front Center 596 610 608 619 632 644
Head Tube 85 106 123 144 170 196
Head Tube Angle 71 71 72 72 72 72
Rear Center 420 420 420 420 420 420
Seat Angle 73 73 73 73 73 73
Seat Tube 428 452 468 493 513 533
Seatpost Length 280 320 360 360 400 400
Seatpost Offset 15 15 15 15 15 15
Standover Height 684 722 756 780 798 818
Stem Angle -4 -4 -4 -4 -4 -4
Stem Length 80 90 90 100 100 110
Top Tube 546 559 569 579 592 604
Trail 68 68 68 68 68 68
Wheelbase 1003 1017 1015 1026 1039 1051

Specs

Frame Kaius 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | UDH Dropout (Universal Derailleur Hanger) | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork Kaius 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Rims CG 40 SL Carbon | Tubeless Ready | 40mm
Hubs CG 40 SL
Tires Pirelli Cinturato Gravel H | 40mm
Crankset SHIMANO GRX (FC-RX820-2) 4iiii Precision Gen3+ Power Meter (Non-Drive Side)
Chainrings 48-31T
Bottom Bracket SHIMANO Press Fit SM-BB72
Chain Shimano CN-M8100
Rear Cog(s) Shimano Ultegra (CS-R8101) 11-34T
Handlebars BMC HB D4 03, 0, 12 | Alloy 6061 | 125mm drop, 70mm reach, 12° flare
Stem BMC RSM 01 | Integrated Cockpit System Technology
Brakes Shimano GRX (BR-RX820)
Saddle Fizik Vento Argo X3 | Kium rails | 140mm
Seat Post Kaius 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Weight 8.3 Kg

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Stone Grey / 54 30006873 210000142698
