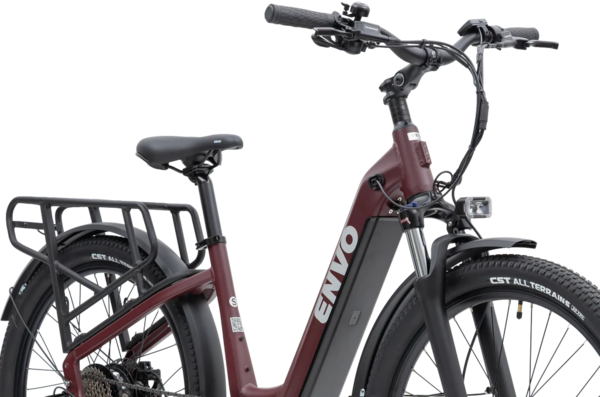

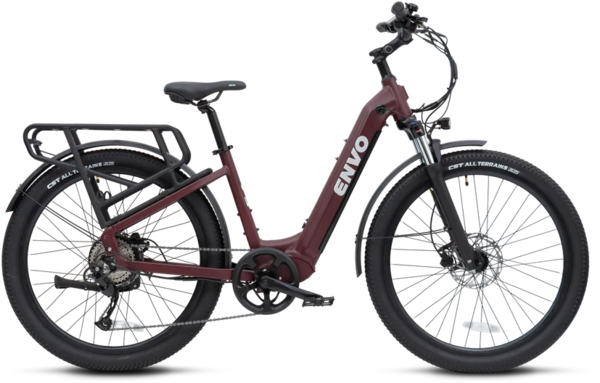

Envo ST50
$2,679.00
Details
ENVO ST50, the ultimate powerhouse e-bike that is both a versatile commuter and a capable cargo carrier. With its step thru yet sturdy frame, the ST50 is designed for a comfortable and enjoyable riding experience. Equipped with a powerful 750W electric motor, this e-bike delivers a smooth and effortless ride that will make your daily commute a breeze. And when it's time to run errands or transport cargo, the ST50's spacious cargo rack and basket make it easy to carry your groceries, tools, or anything else you need.
| Small (in) | Small (cm) | Large (in) | Large (in) | |
|---|---|---|---|---|
| Seat Tube Length | 17.3" | 44.0 cm | 19.8" | 50.3 cm |
| Effective Top Tube Length | 20.7" | 52.7 cm | 27.5" | 57.8 cm |
| Tire Diameter | 27.5" | 69.9 cm | 27.5" | 69.9 cm |
| Minimum Seat Height | 31.5" | 80.0 cm | 33.8" | 86.0 cm |
| Maximum Seat Height | 39.8" | 10.10 cm | 42.1" | 107.0 cm |
| Stepover Height | 15.9" | 40.4 cm | 15.9" | 40.4 cm |
| Small (in) | Small (cm) | Large (in) | Large (cm) | |
|---|---|---|---|---|
| Height | 4'11 - 5'11" | 1.5 - 1.8 cm | 5'5" - 6'6" | 1.65 - 1.98 cm |
| Inseam | 26 - 32" | 66 - 81.3 cm | 29.5 - 36" | 74.9 - 91.4 cm |
Specs
| Fork | 29" Suspension fork, threadless stem, Travel 80mm, matte black (YS727), SUNTOUR, 29x2.4, length 503mm |
|---|---|
| Hubs | M9*100mm*108mm*115mm*36H*13G, quick release |
| Rims | 27.5"*1.75-2.5, alloy double wall, black |
| Stem | threadless |
| Chain | TEC |
| Frame | Hydro-formed Alloy 6061 TIG welded |
| Tires | 27.5"*1.95, black, with AV style tube, CST |
| Brakes | Tektro HD-E350 |
| Rotors | 180mm |
| Saddle | Envo with royalgel, all black |
| Spokes | Stainless steel black 13G spokes, with brass nipple,black |
| Wheels | 27.5" |
| Headset | 1-1/8"*f44/f56*f39.8mm, H:11.8mm±1 |
| Crankset | 1/2"*3/32" L175mm*48T |
| Seatpost | f31.6 traditional seat post |
| Chainrings | 48T |
| Handlebars | W=680mm*, 31.8mm, Back Sweep (9) |
| Tape/Grips | TPR Grip, All black |
| Bottom Bracket | Sealed B.B sets, B920 (68mm, 127.5mm) |
| Rear Derailleur | Shimano 9S |
| Cassette/Freewheel | 11-36 |
| Motor | 48V500W |
| Pedals | Alloy, 9/16? |
| Battery | 48V 15Ah 21700 LG cells Lithium battery |
| Charger | 54V 2A |
| Controller/Display | LCD Panel with Bluetooth 25A 48V |
* Subject to change without notice.
Videos
ST 50
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Cactus / Large | 665878845315 | ENST50R14C20 | 210000148156 |
| Maroon / Small | 665878845322 | ENST50R14C17 | 210000148159 |
| Maroon / Large | 665878845223 | ENST50R14M20 | 210000148157 |
| Cactus / Small | 665878845216 | ENST50R14M17 | 210000148158 |
