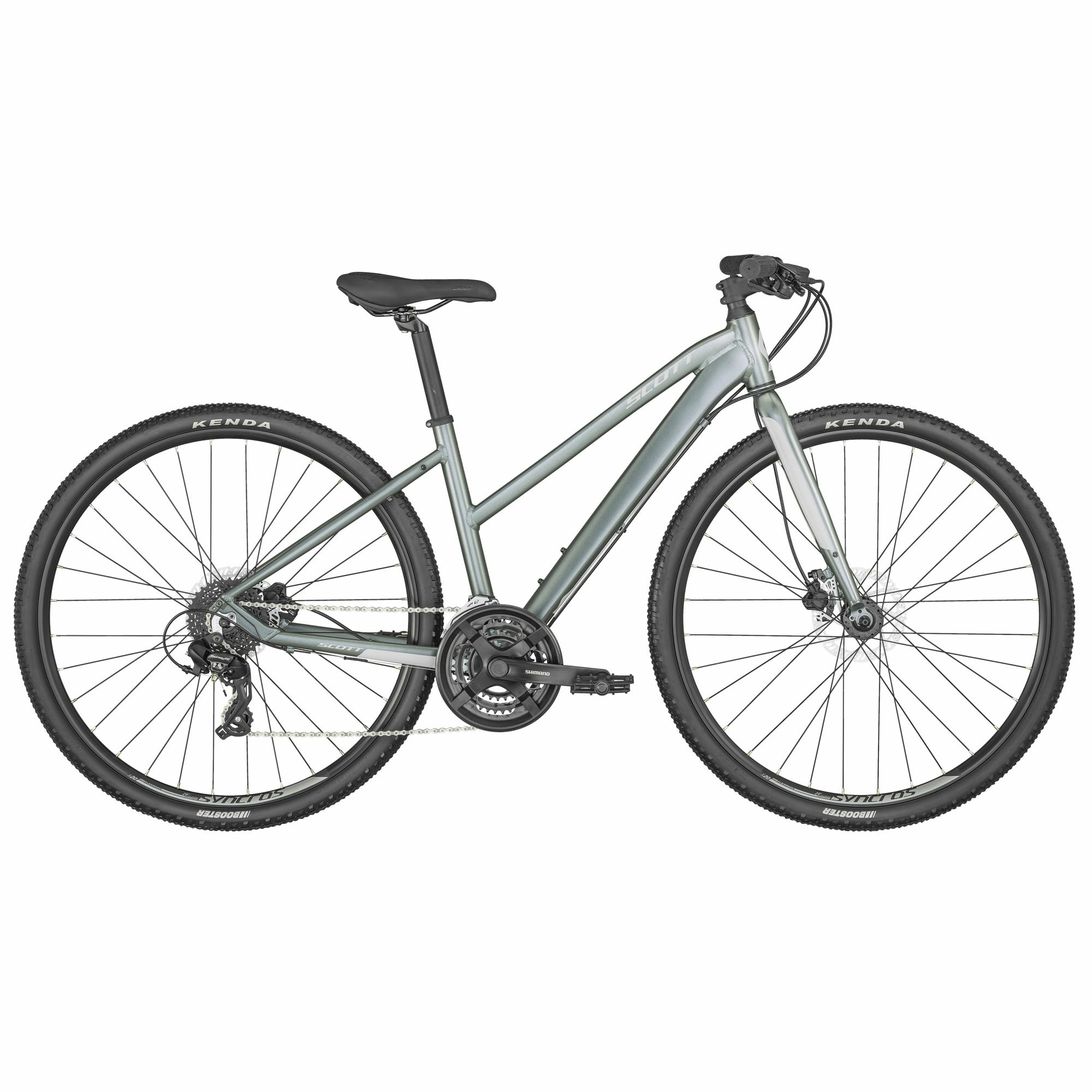

Scott Sub Cross 50 Lady
This item is currently not available.
Details
The SCOTT SUB Cross 50 emphasizes comfort and convenience for touring and transportation. The SUB Cross is set up perfectly for your excursions.
Please note that bike specifications are subject to change without prior notice.
- Sub Cross Men Alloy Frame
- Front suspension: Suntour 63mm
- Shimano 24 Speed
- Shimano Disc Brakes

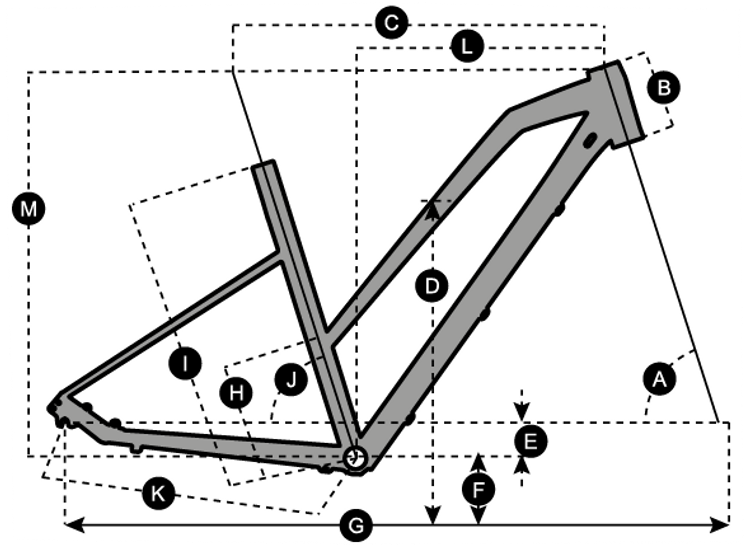

| Small | Medium | Large | X-Large | ||
|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE | 70.0 ° | 70.0 ° | 70.0 ° | 70.0 ° |
| B | HEAD TUBE LENGTH | 115.0 MM | 130.0 MM | 155.0 MM | 180.0 MM |
| C | TOP TUBE HORIZONTAL | 550.0 MM | 565.0 MM | 575.0 MM | 590.0 MM |
| D | STANDOVER HEIGHT | 679.5 MM | 684.1 MM | 695.8 MM | 702.6 MM |
| E | BB OFFSET | 56.0 MM | 56.0 MM | 56.0 MM | 56.0 MM |
| F | BB HEIGHT | 406.0 MM | 406.0 MM | 406.0 MM | 406.0 MM |
| G | WHEEL BASE | 1,067.0 MM | 1,078.0 MM | 1,083.0 MM | 1,099.0 MM |
| H | BB CENTER TO TOPTUBE CENTER | ||||
| I | BB CENTER TO TOP OF SEATTUBE | 420.0 MM | 460.0 MM | 500.0 MM | 540.0 MM |
| J | SEAT ANGLE | 73.5 ° | 73.0 ° | 72.3 ° | 72.0 ° |
| K | CHAINSTAY | 456.0 MM | 456.0 MM | 456.0 MM | 456.0 MM |
| L | REACH | 374.0 MM | 379.0 MM | 375.9 MM | 383.5 MM |
| M | STACK | ||||
| N | STEM LENGTH | 70.0 MM | 80.0 MM | 90.0 MM | 100.0 MM |
| 0 | TRAIL |
Specs
| Pedals | Feimin FP-803 |
|---|---|
| Fork | Sub Cross Steel Rigid Fork |
| Hubs | Formula DC-19 FQR Disc|Formula DC-25 RQR Disc |
| Rims | Syncros X-20 Disc / 32H / black |
| Stem | JD-ST161A / 7° / Black |
| Chain | KMC Z-8.3 |
| Frame | Sub Cross Alloy 6061 / Custom butted tubing / Sub Cross Men/Lady Rigid geometry / SCOTT urban kit ready |
| Tires | Kenda Booster / 700x45C / 30 TPI |
| Brakes | Tektro HDM275 Hydr. Disc |
| Rotors | Tektro / 6 bolts / F&R 160mm |
| Saddle | Syncros UC3.0 / UC3.0W |
| Spokes | 14g / stainless / black |
| Headset | Syncros OE Press Fit / 1 1/8", OD 50mm / ID 44mm |
| Crankset | Shimano FC-TY301 / 48x38x28 / w/CG |
| Seatpost | HL-SPC207 / 31.6mm / 350mm / Black |
| Shifters | Shimano SL-M315-8 / R-fire plus / w/gear indicator |
| Handlebars | Men:JD-MTB11AFS / 660mm/9° bend / Lady:JD-HB-TR28AL / 660mm/15° bend |
| Bottom Bracket | Feimin FP-B908N / Cartridge Type |
| Rear Derailleur | Shimano Tourney RD-TX800 / 24 Speed |
| Front Derailleur | Shimano FD-TY710 / 34.9mm |
| Cassette/Freewheel | SunRace CSM55 8AV / 11-34T |
* Subject to change without notice.
