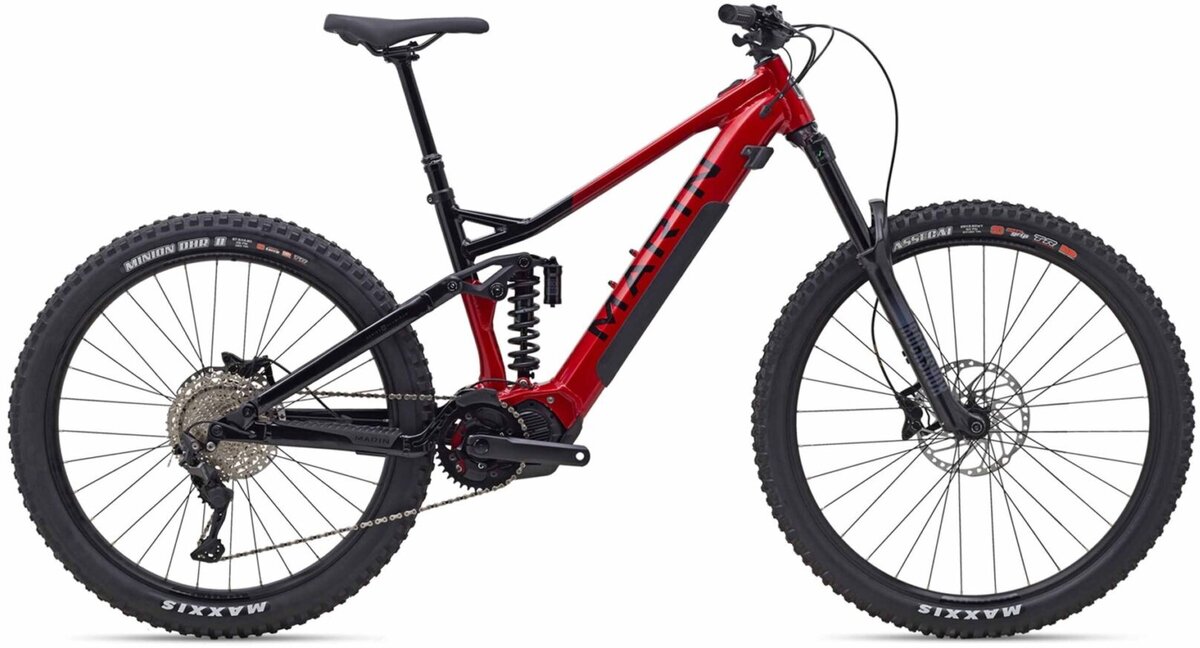

Marin 2022 ALPINE TRAIL E1 RED/BLACK

All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
FORK
RockShock 35 Gold RL 29", Motion Control Damper, 160mm Travel, Maxle Stealth Axle, 44mm Offset

SHOCK
RockShock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb

RIMS
Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

HUB REAR
Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body

HUB FRONT
Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

SPOKES
14g Black Stainless Steel

TIRES
Front: Vee Tire Co Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible

DERAILLEUR REAR
Shimano Deore 5100 Direct Attachment, 10-Speed

DERAILLEUR FRONT
-

SHIFT LEVER
Shimano Deore M4100-R, I-Spec EV, 10-Speed

CRANKSET
Marin Forged Alloy 165mm Length, Narrow Wide 38T Chainring, e13 Plus Chain guide, Aluminum Plate

MOTOR
Shimano STEPS E7000, 250W, 60Nm

CHAIN
KMC X-10E, EBike Specific, Silver

CASSETTE
Shimano Deore M4100-10 10-speed 11-46T

BRAKES FRONT
Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor

BRAKES REAR
Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor w/ Speed Sensor

BRAKE LEVERS
Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible

HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM
Marin 3D Forged Alloy, 35mm

GRIPS
Marin Single Clamp Locking

HEADSET
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST
TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

SADDLE
Marin eMTB Saddle

PEDALS
Marin MTB Plastic

BATTERY
BT-8035, Internal 504Wh

DISPLAY
SC-E7000 Display

SWITCH
SW-E7000 Left Hand Switch for Assist Mode Change

EXTRAS
Shimano Battery Charger EC-E6002, Bolt-on Thru-Axle
